Product List

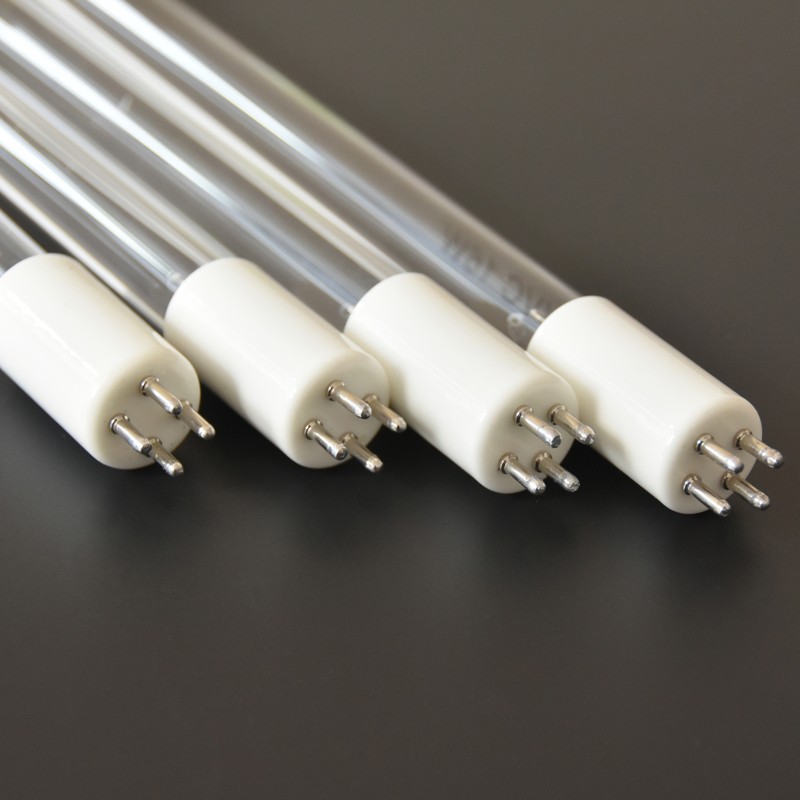

Single end 4 Pin lamp

Single end 4 Pin lamp

  1. Ideal for germicidal system, water and air treatment.
  2. Various of holders for chioce
  3. Quartz glass material, the tube is strong enough.
  4. Average lifetime 8000 hours
  5. Ozone-free, ozone-generating, high-output, instant and amalgam lamp are available
  6. Quartz sleeve and electrical ballast can be served
Single end 4 Pin series
Wave length 253.7nm
voltage 30V-176V(Customized)
Power 10W-145W(Customized)
Pin 1pin, 2pin, 4pin
installation freestanding
Lifetime 8000 hours
Diameter 12mm 15mm 19mm 25mm
Main body Material Quartz glass
End material Ceramic, aluminum, plastic
Warranty 1 year

Product Description





No exposed to the light directly!!!
Customization is available !
Ozone-free, ozone-generating, high-output, instant and amalgam lamp are available


Lamp Description Diameter Length(mm) Power Voltage Current(mA) Peak wave length(nm) Intensity（1m） Lifetime(h)
GPH212T5L/4P 15mm 212 10w 30v 425 253.7 25μW/cm2 8000
GPH241T5L/4P 15mm 241 11w 33v 425 253.7 26μW/cm2 8000
GPH287T5L/4P 15mm 287 14w 41v 425 253.7 34μW/cm2 8000
GPH303T5L/4P 15mm 303 15w 43v 425 253.7 37μW/cm2 8000
GPH317T5L/4P 15mm 317 16w 49v 425 253.7 39μW/cm2 8000
GPH357T5L/4P 15mm 357 17w 51v 425 253.7 55μW/cm2 8000
GPH436T5L/4P 15mm 436 21w 62v 425 253.7 70μW/cm2 8000
GPH550T5L/4P 15mm 550 25w 68v 425 253.7 81μW/cm2 8000
GPH793T5L/4P 15mm 793 38w 112v 425 253.7 117μW/cm2 8000
GPH843T5L/4P 15mm 843 41w 120v 425 253.7 139μW/cm2 7000
GPH843T5LHO/4P 15mm 843 75w 97v 800 253.7 189μW/cm2 8000
GPH1148T5L/4P 15mm 1148 55w 135v 425 253.7 161μW/cm2 8000
GPH1554T5L/4P 15 1554 75w 176v 425 253.7 210μW/cm2 7000
GPH1554T5LHO/4P 15 1554 145w 175v 800 253.7 280μW/cm2 8000
